Universal 250gph/16-18psi
Universal 250gph/16-18psi

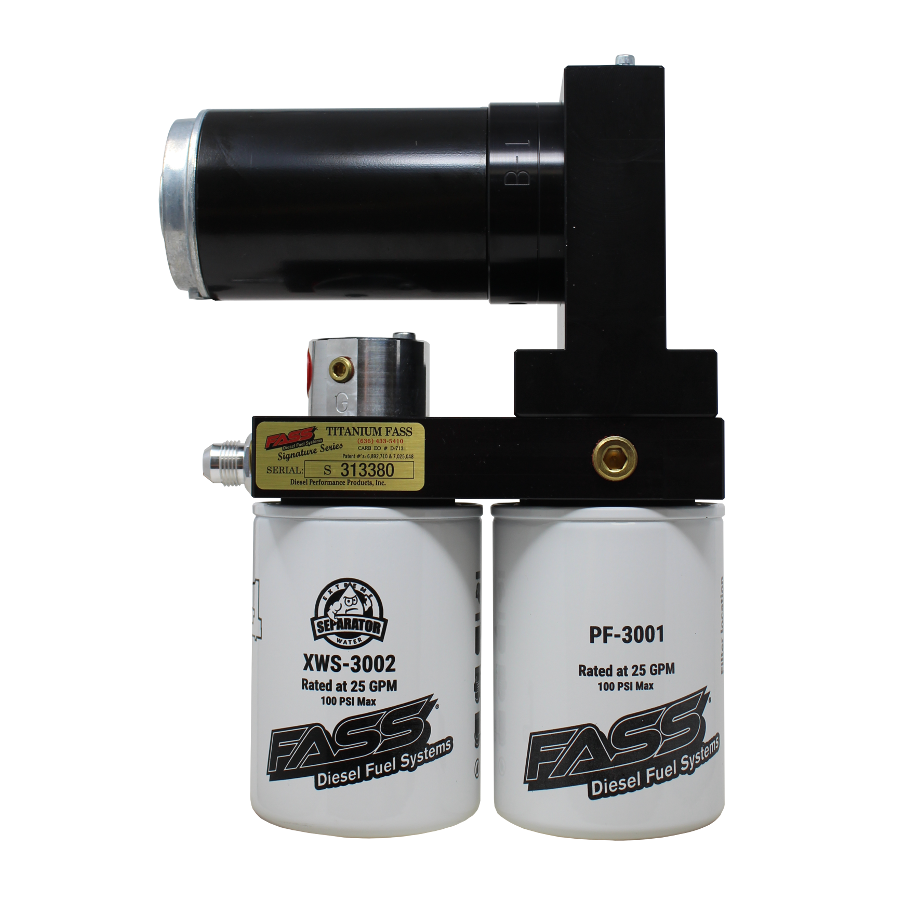

FASS Fuel Systems Titanium Signature Series Diesel Lift Pump Class 8 Semi 250Gph (TS Uim 250G). The Titanium Signature Series diesel fuel lift pump was engineered by FASS Fuel Systems to be the top performing, longest lasting and most reliable aftermarket filtration system in the diesel industry.
Rated at 290 gallons per hour and backed by our limited 1 Million Mile / 5 Year Warranty the Titanium Signature Series lift pump is capable of supporting a diesel engine with enough fuel with multiple fueling system upgrades.
A Titanium Signature Series lift pump also offers advanced filtration benefits that will help protect the injection systems, effectively extending the life of your Injection Pump and Injectors.
These Benefits include an improved filtration rating of 2 Microns, a built in water separation filter and FASS Fuel Systems patented air/vapor removal process.
The Titanium Signature Series diesel fuel pumps are the superior fuel pump and filtration system, in the diesel industry. This is because here at FASS Fuel Systems we focus on perfecting our pumps and how they are engineered, taking the extra steps that our competitors ignore while they rush to get product out the door. By doing this we have less than a 2 percent failure rating with our motor and a design that implements unique design features you can only get with FASS Fuel Systems
FASS Silencing Technology (FST) was developed by the engineering team here at FASS Fuel Systems to help reduce the noise created by aftermarket fuel and air separation diesel lift pumps. By using radius cuts, tighter tolerances on all gears and a high quality military Spec'd Coating over the aluminum base, FASS Fuel Systems was able to develop the quietest fuel air separation system on the market.
Performance Radius Cuts (PRC) are an advanced machining technique used to improve the flow of fuel through the diesel lift pump by creating smooth flowing cuts within the aluminum housing. This prevents the reintroduction of air and vapor back into the fuel and also to prevent stagnate fuel pockets from forming within the corner of a 90 degree bend.
FASS Fuel Systems Titanium Series Diesel Fuel Pumps are the only Fuel Air Separation System that incorporates these exclusive Performance Radius Cuts, lesser competitors commonly use T-Bone and square 90 degree fittings that can limit fuel flow, cause restrictions and reintroduce air back into your fuel.
Mass Flow Return (MFR) technology is used to continually polish your fuel by keeping a positive pressure on the fuel being delivered to the engine and returning the fuel, that's not yet needed, back to the tank after it has been passed through the filtration process, removing dirt, air, vapor and water. This means your fuel is being constantly moved and cleaned, guarantying that your diesel truck always has the freshest and cleanest fuel possible.
Universal 290GPH Lift Pump Features:
- Preset 16 PSI Fuel Pressure
- 250 Gallons Per Hour Flow Rating
- Removes Water, Air and Debris From Diesel Fuel
- 2 Micron Filtration Rating
- Protects and Extends The Life Of Your Injectors
- Improved Cold Weather Starts
- Decreases Carbon Monoxide and Carbon Dioxide Emissions
- 1/2 Inch Fuel Lines and Ports
- Fuel Mileage Improvement
- Improved Fuel Volume Delivery
- Smoother Engine Idle
- Optional Electric Heater Ports
- Optional Fuel Pressure Gauge Port
- 1 Million Mile / 5 Year Warranty
- 30,000 Mile Filter Life Expectancy
- Quietest Motor On The Market
Note: We have designed this kit to work with Mechanical Unit Injectors. Our UIM kits include an oil pressure switch which is installed in an oil galley and is used to power the FASS on once the engine is running, rather than a key-on power source.
Installing our non-UIM kit on an engine with Mechanical Unit Injectors can result in filling the cylinders with fuel when the engine is not running.
